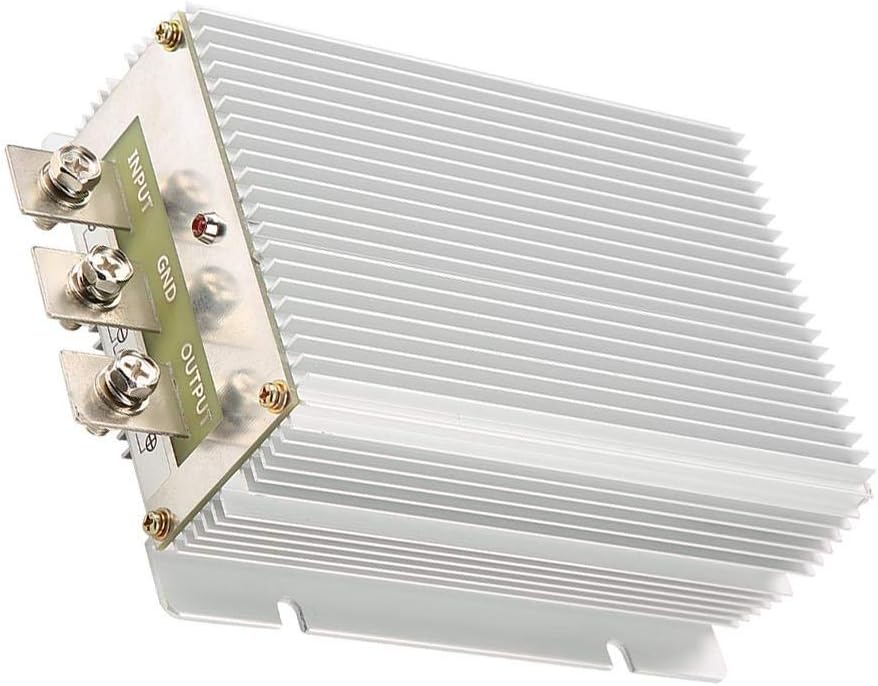

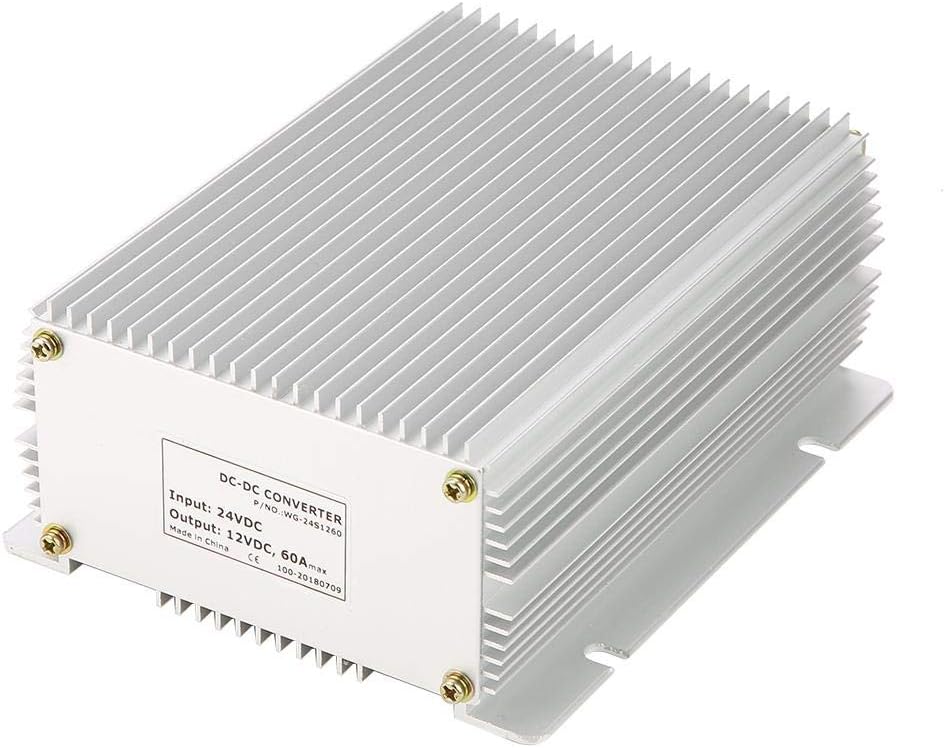

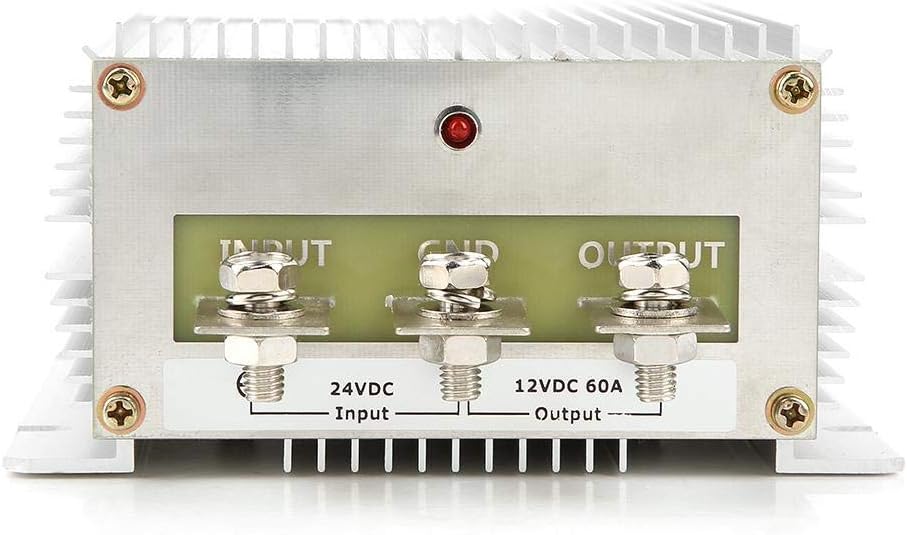

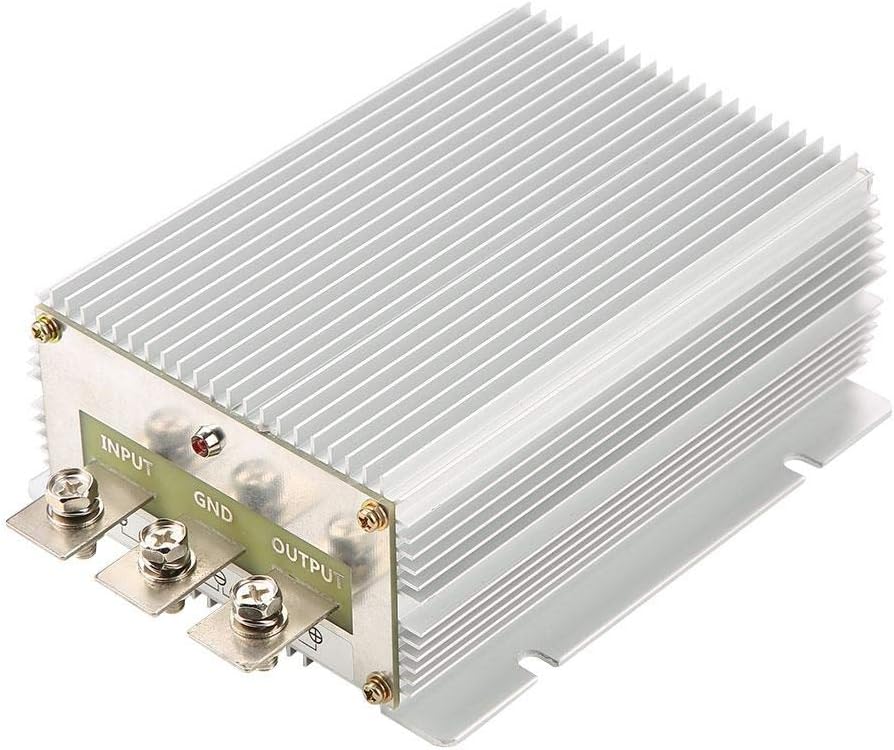

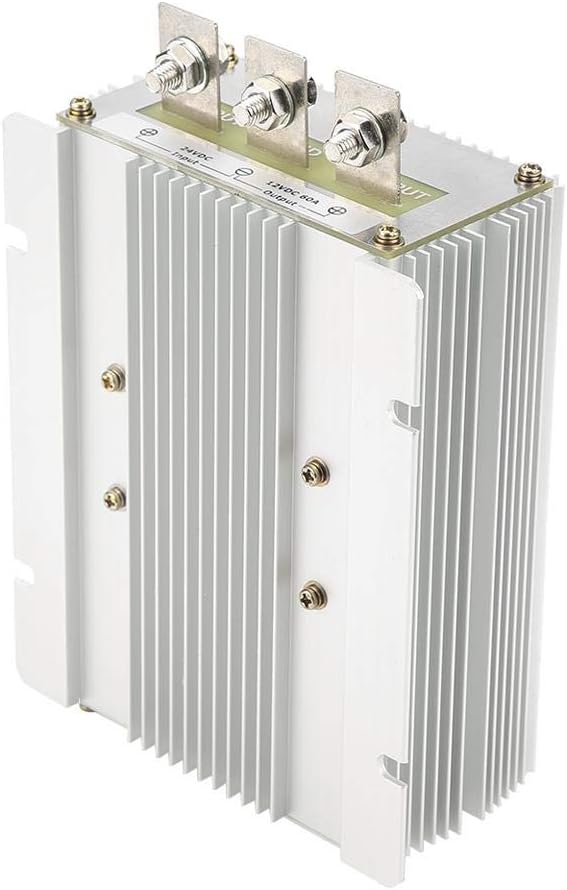

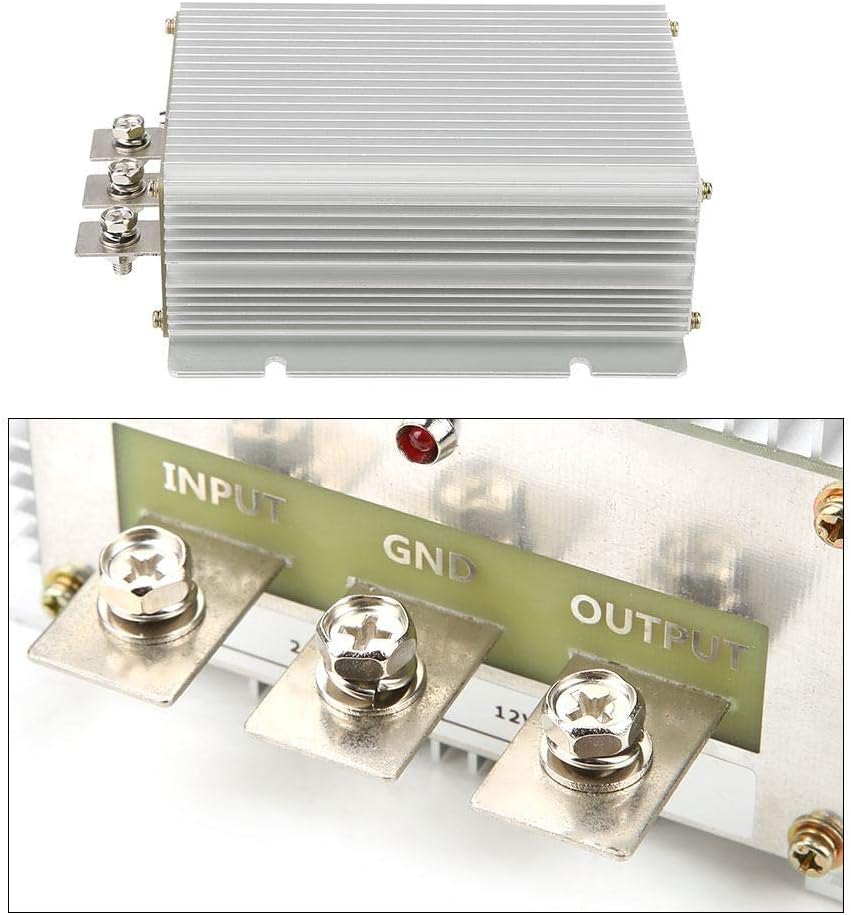

24V to 12V 60A 1200W Non-Isolated DC/DC Converter Voltage Regulator G148828
Sale price
$23.95
Regular price $106.72
Skip to product information
Model: WG-24S1260; Input voltage: DC 24V; Input voltage range: DC 18-36V; Conversion efficiency: 96%; Output voltage: 12V; Output current: 60A; Rated output power: 720W.
Wide input voltage, built-in overcurrent, overvoltage, over temperature, short circuit and other automatic protection functions. Adopting imported precision components, conversion efficiency up to 96%, stable output.
Sealed with high quality thermal conductive silicone, IP68 waterproof, dustproof, anti-shock.
Die-cast aluminum shell, compact size, convenient to install.
Quality assurance, service life up to 100,000 hours.
24V to 12V 60A 1200W Non-Isolated DC/DC Converter Voltage Regulator G148828
Sale price
$23.95
Regular price $106.72
Shipping calculated at checkout.
Model: WG-24S1260; Input voltage: DC 24V; Input voltage range: DC 18-36V; Conversion efficiency: 96%; Output voltage: 12V; Output current: 60A; Rated output power: 720W.
Wide input voltage, built-in overcurrent, overvoltage, over temperature, short circuit and other automatic protection functions. Adopting imported precision components, conversion efficiency up to 96%, stable output.
Sealed with high quality thermal conductive silicone, IP68 waterproof, dustproof, anti-shock.
Die-cast aluminum shell, compact size, convenient to install.
Quality assurance, service life up to 100,000 hours.
Specification:
Output peak power: 130%
Voltage regulation ratio: <1%
Load regulation ratio: <2%
No load current: <40mA
Ripple: <300mV
Working temperature: -35~80
Waterproof rating: IP68

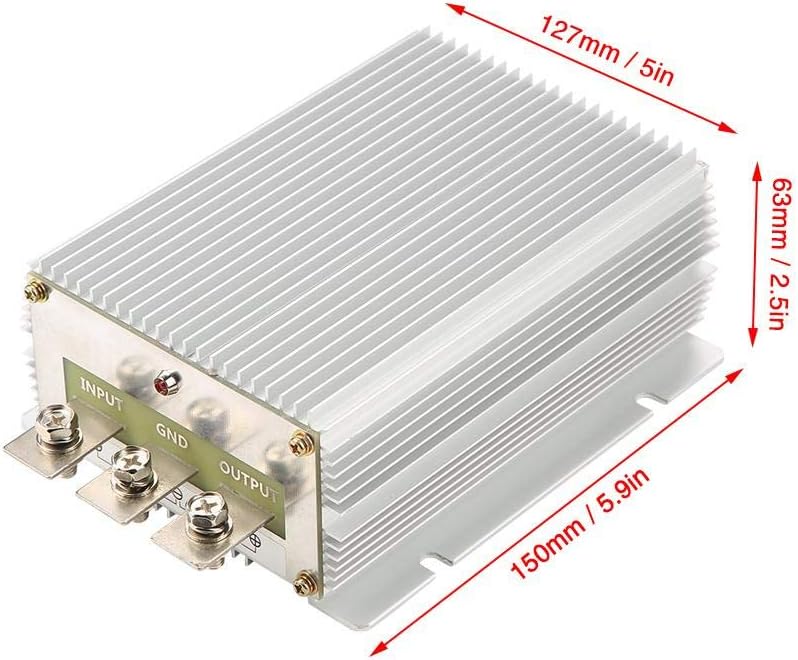

Item size: 150*127*63mm / 5.9*5*2.5in
Package weight: Approx. 1490g / 52.5oz
Package list:
1 * DC-DC Power Supply
Note:
1. Due to the difference between monitors and light effects, the pictures may not reflect the actual color of the item.
